Engine Structure Labor-saving Ditching Machine for Agricultural Farming Agricultural
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | AHCF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $613.00/pieces 1-2 pieces |
|
Detail Information |
|||
| Machine Type: | Cultivator | Power Type: | Gasoline |
|---|---|---|---|
| Type: | Farm Cultivator | Condition: | New |
| Warranty: | 1 Year | Use: | Farm, Garden |
| Weight: | 150 KG | Dimension(L*W*H): | 155*75*105cm |
| Key Selling Points: | High Safety Level | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine, Gearbox, Shassis |
| Applicable Industries: | Farms, Home Use, Retail, Orchard | Showroom Location: | Indonesia, Thailand |
| Product Name: | Orchard Cultivator | Engine Type: | Diesel Engine |
| KW: | 5.2 | Application: | Farm Garden, Orchard |
| Drive Mode: | Four-Wheel Drive | Color: | Optional |
| Working Width: | 11-39cm (adjustable) | Tilling Width: | 10-40cm (adjustable) |
| Transmission: | Gear Transmission | Structure: | Engine, Chassis |
Product Description

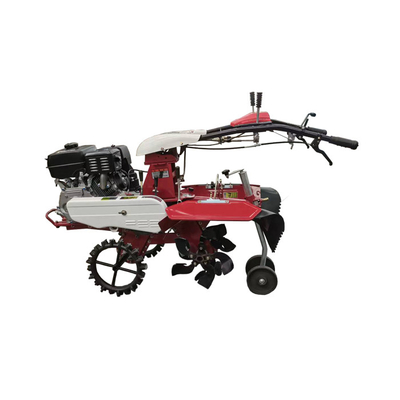

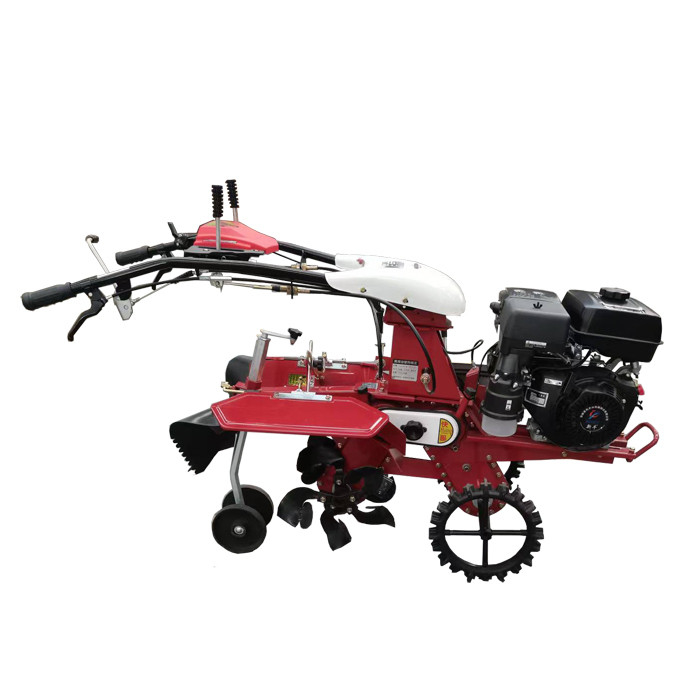

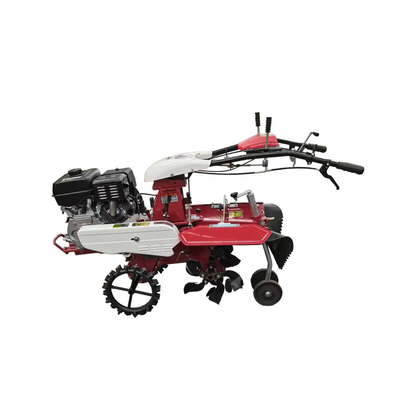

High Quality Labor-saving Ditching Machine for Farm
This machine introduces Taiwan's technology, and had improved the design on the original basis, with light weight, small volume, simply operation and other characteristics. Equipped with 1/2 reducer engine, low speed and high torque, it is easier for hard ground rotary tillage. Main application to: dry land, vegetable greenhouses, tea garden, orchards, hills and other small land operations. With the corresponding tools can be carried out intertillage, weeding, ditching, fertilization, and other operations. Really realize one machine with multi-purpose, tilling dry land deeply, reach out-of-sight corner, no residual tillage, won't be tangled in the deep grass, and easy to use. Truely a model of multi-functional small rural management machine.
| No. | Item | Unit | Specification | |
| 1 | Model | / | 3TGQ-5QB | |
| 2 | Matching Engine | Model | / | 177F Gasoline Engine |
| Structure | / | Single Cylinder,Air Cooled,Four-stroke | ||
| Rated Power | kw | 5.2 | ||
| Rated Speed | r/min | 1800 | ||
| Starting Mode | / | Manual | ||
| 3 | Overall Dimension | mm | 1550*750*1050mm | |
| 4 | Weight | kg | 150 | |
High power, low fuel consumption
Variety of air filter, multi-step filtering,
Strong power and good purification with lower fuel consumption
360° rotatable handle
According to the users to adjust the height of handle and it can rotate 360 degress which is suitable for any direction of operation. Labor-saving.
Ultra-narrow body
The machine has a minimum width of 38 cm, height of 70 cm and length of 120 cm. It is small and flexible and will not affect crops on both of sides.
High efficiency and ditching well
It can operate 1-1.5 acres of land in one hour and is equivalent to more than 15 people working at same time, saving money and labor.
Low fuel consumption — Economical
Note: The width of trench can reach
15-45cm with different cutting tools
